products：

New style single-screen, infrared breast diagnostic Luxury is based on the human body tissue absorption of infrared light of different principles,Issued by the infrared probe 0.8 ~ 1.5μm wavelength of infrared light transillumination breast,the photoelectric conversion signal processing by the host,the breast tissue of the various lesions appear on the screen,After image processing a variety of quick and accurate diagnosis of breast disease，Under the shadow of the deep, shallow.Boundaries and the distribution of blood vessels can be identified in benign tumors, cancer, hyperplasia, inflammation and breast cysts, such as different disease.Infrared mammary diagnostic clinical proof of breast disease can provide rapid, accurate scientific diagnosis for breast cancer screening, but also can be used in the field of beauty care.

features：

A new style luxury single-screen features of the largest diagnostic breast infrared image more clearly shows a more streamlined appearance, vision better, more convenient operation.
2 Windows operating system, advanced logic design, friendly user interface in Chinese, all icons of the operation;
3 probe effective spectrum wavelength 0.8-1.5μm.
4 probe optical power output is adjustable. The maximum output is not less than 0.2W, no more than 1W.
5 IR breast diagnostic image resolution is not less than 600TVL.
6 Power supply 220V ± 22V, 50HZ ± 1HZ.
7 input power is less than 300VA.
8 operation modes: continuous operation, intermittent load.
9 color LCD Resolution: not less than 1024 × 768.
Camera Focus Range 10: 10mm-800mm.
11 software operating environment: WINDOWS XP platform, the hard disk is not less than 160G, CPU frequency not less than 2.8G, 19-inch LCD color monitor.
Working conditions 12
A, ambient temperature: 5 ℃ -40 ℃;
B, Relative humidity: ≤ 80%;
C, using the power supply: AC220V ± 10%, 50HZ ± 2%;
D, warm-up time: ≥ 2min.
13 has a digital display, automatic alarm, automatic protection function, high-performance infrared sensor, adjustable brightness Promise, hotline 051 685 653 220; real-time display monitoring area; display of color and black and white images, standard video signal output; can be connected with a variety of video equipment ; with image processing functions, such as freezing, negative image, representation, the left screen, right panel, double width and so on.
14 has a sub-display.
15 with negative images, enhance and reproduction functions.
Collected 16 patients able to image and image gallery software comparison;
17, according to the need to generate reports, and print.
18 has a file management function, you can print reports, store patient information.
19 online reports can be generated, using the Internet or local area network to send image information, resource sharing and remote consultation.

configuration：

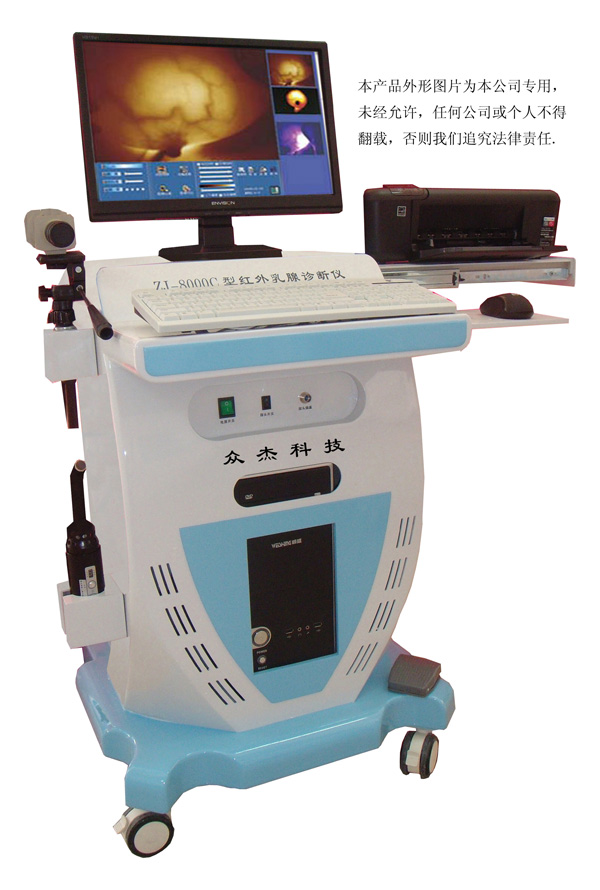

Japan imported high-definition, high-resolution infrared camera, with digital display, automatic alarm, automatic protection function, high-performance infrared sensor, high performance, high-profile infrared breast hosts, the United States imported a color printer, 19 LCD Monitor, the independent intellectual property rights luxury medical cart, the latest infrared breast self-developed image processing software, progressive scan image processing card, foot switches and other components.
